Description

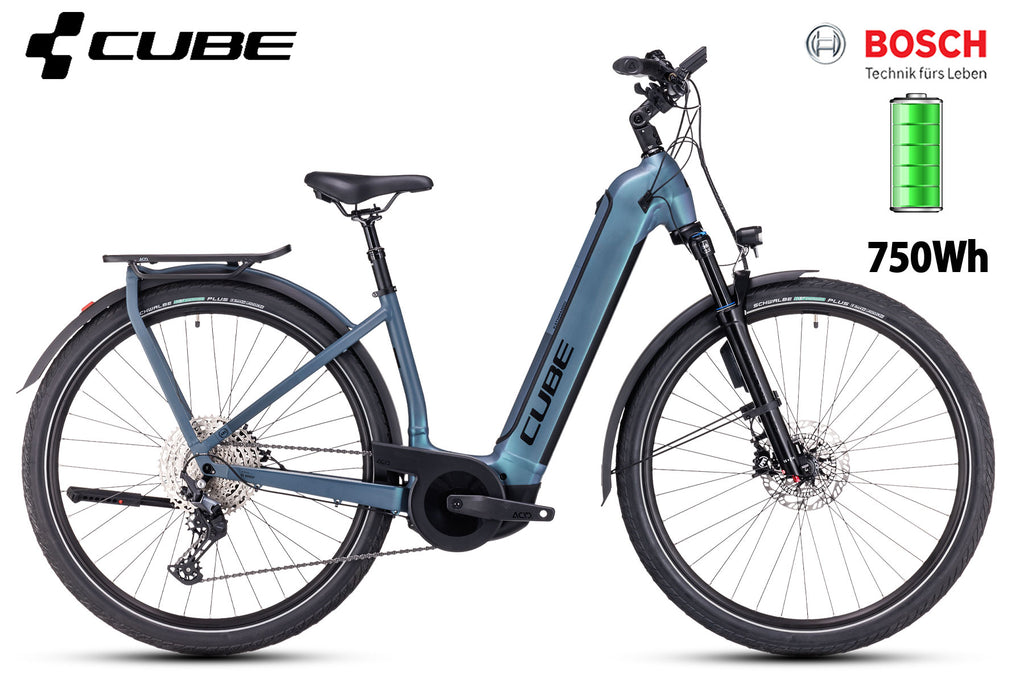

When developing the Kathmandu frame, we placed great emphasis on comfort, versatility and durability - in all variants, both the men's and the trapeze and low-entry frames. It offers space for the high-capacity Bosch battery so that the bike never runs out of juice prematurely. And thanks to Efficient Comfort Geometry – nomen est omen – many hours and kilometers in the saddle feel like a walk. Our integrated luggage rack IC 3.0 is just as stable and robust as its predecessors, but now, together with the rear mudguard, it fits even more harmoniously into the frame design - for a subtle, elegant look. All luggage and accessories that need to be taken with you on tour can be safely stored there.
Product description
- Frame Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
- Size Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapezes: S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm)
- Suspension fork SR Suntour Mobie 35 EQ Air, ABS, tapered, 15x110mm, 100mm
- Motor Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
- Bosch PowerTube 750 battery
- Remote Bosch LED Remote
- Display Bosch Kiox 300
- Bosch 4A charger
- Brake system Magura MT C ABS, Hydr. Disc Brake (180/180)
- Shimano Deore RD-M6100-SGS rear derailleur , ShadowPlus, 12-speed
- Shimano Deore SL-M6100-IR shift lever , direct attach
- Crankset ACID E-Crank, 40T, 175mm (EE: 170mm)
- Cassette Shimano Deore CS-M6100, 10-51T
- Chain Shimano CN-M6100
- Front wheel hub Shimano HB-MT400-B, 15mm, Boost, Centerlock
- Rear wheel hub Shimano FH-MT410-B, 12mm, Boost, Centerlock
- Rims CUBE EX23, 36H, Disc, Tubeless Ready
- Tires Schwalbe Energizer Plus, Performance, Green Guard, 55-622
- Handlebar CUBE Comfort Trail Bar, 700mm
- Stem CUBE Comfort Stem Pro, 31.8mm, adjustable
- ACID Travel Comfort handles
- Seat post CUBE Suspension Seatpost HD, 30.9mm
- Seat clamp CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm)
- Saddle Natural Fit Sequence Comfort
- Headset M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, top zero stack 1 1/8" (ZS 44mm), bottom zero stack 1 1/2" (ZS 56mm)
- ACID PP trekking pedals
- Headlight CUBE Shiny 50 Lux, 12V, DC
- Rear light ACID Mudguard Rear Light PRO-E, 12V, DC
- Stand ACID FM Pure Kickstand
- ACID 65 Integrated Carrier 3.0 mudguards
- Bell Ring Bell
- Luggage rack ACID Integrated Carrier 3.0, CUBE Adapter Compatible
- Weight 27.6kg
- Max. system weight 140 kg
- Maximum rider and bike weight 135 kg
- Color emerald gray 'n' blue
