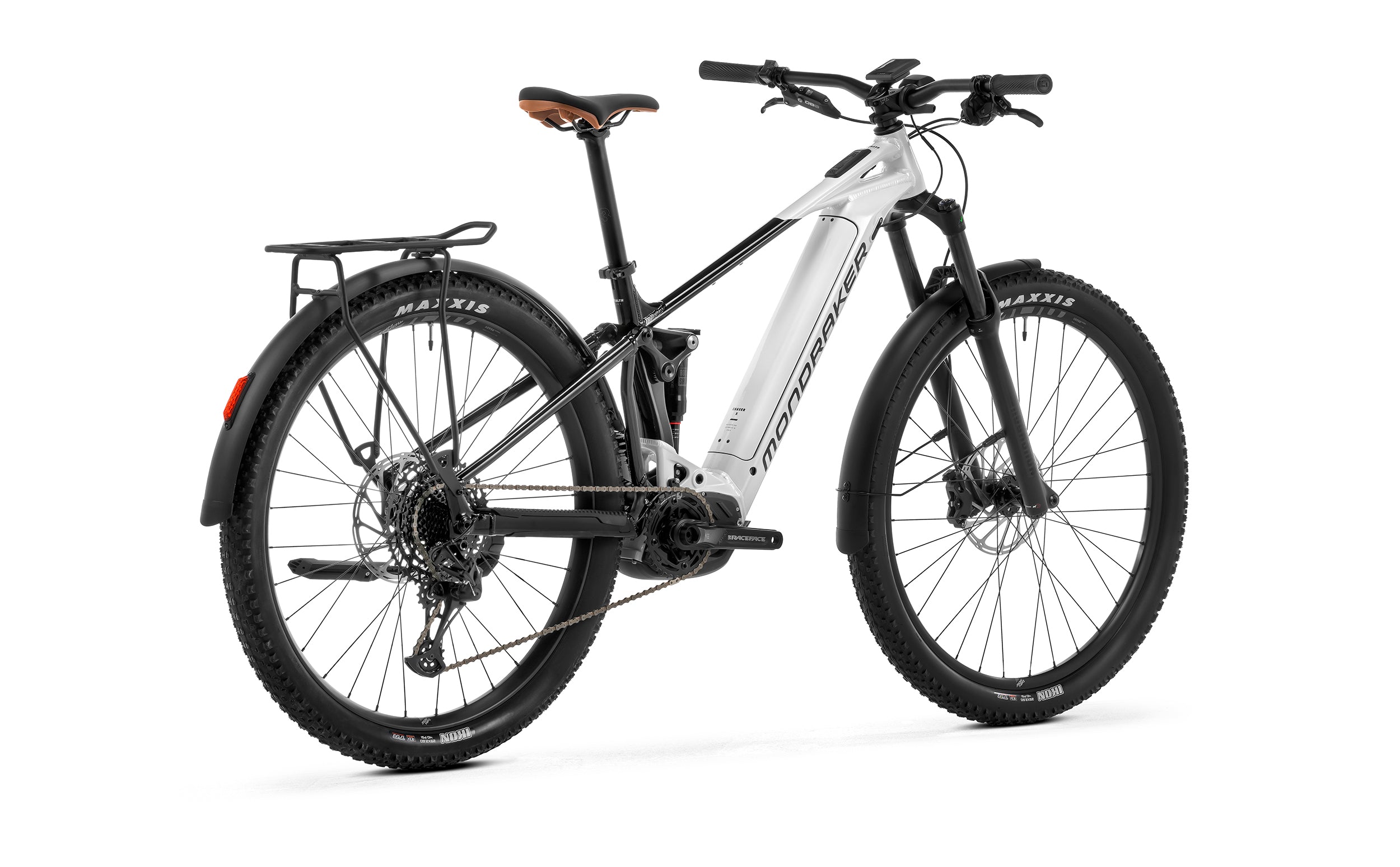

Another model making its debut in 2023 is the CHASER Rear suspension provides additional safety and is key to making the Chaser one of the most versatile bikes in our range. It is also equipped with the Performance Line CX GEN 4 BS3 drive from Bosch. It gives you the security you need to be able to explore the world around you at your leisure - without having to worry about how far you can drive and still be able to safely make your way back. The Chaser
FRAME
Chaser 6061 Stealth Evo aluminum, zero suspension system optimized for e-bikes, 140mm travel, forward geometry, integrated removable battery, Boost 12x148mm rear axle, butted head tube, upper rocker monoblock one-piece, HHG internally routed cables and cables, sealed "MAX Capacity" bearings , extra large 17mm axles, speed sensor integrated in the dropout, exclusive plastic motor cover, splash guard for dampers
Size
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
MUTE
RockShox Deluxe Select R DebonAir, 205x60mm. Settings: low-speed rebound, air pressure. Upper mounting: Trunnion, lower bearings 25x10mm
DAMPER SETTINGS
DebonAir Progressive, compression: light, rebound: linear, 1 token
FORK
RockShox Recon Silver RL 29, 150mm, Solo Air, butted head tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: Low-speed compression to lock, rebound, air pressure
TAX RATE
Onoff Saturn butted for 1-1/8" to 1-1/2" head tube, sealed ACB bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
STEM
MDK Urban 35mm 0º, forged 6061 aluminum, 31.8mm handlebar diameter
HANDLEBAR
Onoff Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
HANDLES
Onoff Twin, lock-on single, 135mm
SEAT POST
Onoff Sulfur 0-R, 6061 T6 aluminum, 3D forged, diameter 31.6mm, length 400mm
SADDLE
MDK Urban
FRONT BRAKE
Sram DB8, 4-piston brake caliper, one-piece 200mm 6-hole Centerline brake disc, organic brake pads with steel backplate
REAR BRAKE
Sram DB8, 4-piston brake caliper, one-piece 200mm 6-hole Centerline brake disc, organic brake pads with steel backplate
BRAKE LEVER
SRAM DB8, reach adjustment with tool
RIMS
MDK-HP1 29, 30mm inner width, tubeless ready, 32 spokes
SPOKE
CN round, stainless steel
HUB FRONT
Formula DC711, Boost 15x110mm, sealed bearings, IS 6-hole
REAR HUB
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6-hole
FRONT TIRES
Maxxis Ikon 29x2.6, Tubeless Ready, Dual Compound, EXO puncture protection, 60 TPI, foldable
REAR TIRE
Maxxis Ikon 29x2.6, Tubeless Ready, Dual Compound, EXO puncture protection, 60 TPI, foldable
CRANKS
Race Face Aeffect e-Bike, 165mm
CHAINRINGS
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
CHAIN
Sram SX Eagle, 12-speed, power lock
REAR DERAILLEUR
Sram SX Eagle, Roller Bearing Clutch Type 3, Cage Lock, long cage, 1x12 gear, X-Actuation 1:1
SHIFT LEVER
Sram Trigger SX Eagle, 12-speed, X-Actuation 1:1, Single Click
CASSETTE
Sram PG-1210, 11-50T, 12-speed
DERAILLEUR HANGER
Mondraker M068
MISCELLANEOUS
Front lighting: 50 lux output, 6-12V DC, waterproof aluminum housing. Rear lighting: Mounted on the mudguard, with reflector, e-bike version, 6-12V. Mudguards: black MDK Custom aluminum mudguards. Luggage rack: MDK luggage rack made of aluminum, max. load 25kg. Stand: Massload KSA18-40
WEIGHT
26.8kg
DISPLAY
Bosch Kiox 300 / Bosch Led Remote
ENGINE
Bosch Performance Line CX (25km/h) Smart System
BATTERY
Bosch Powertube 625Wh
