Extend your weekend . Make your daily commute faster and more exciting. Leave home later and arrive at the office earlier.

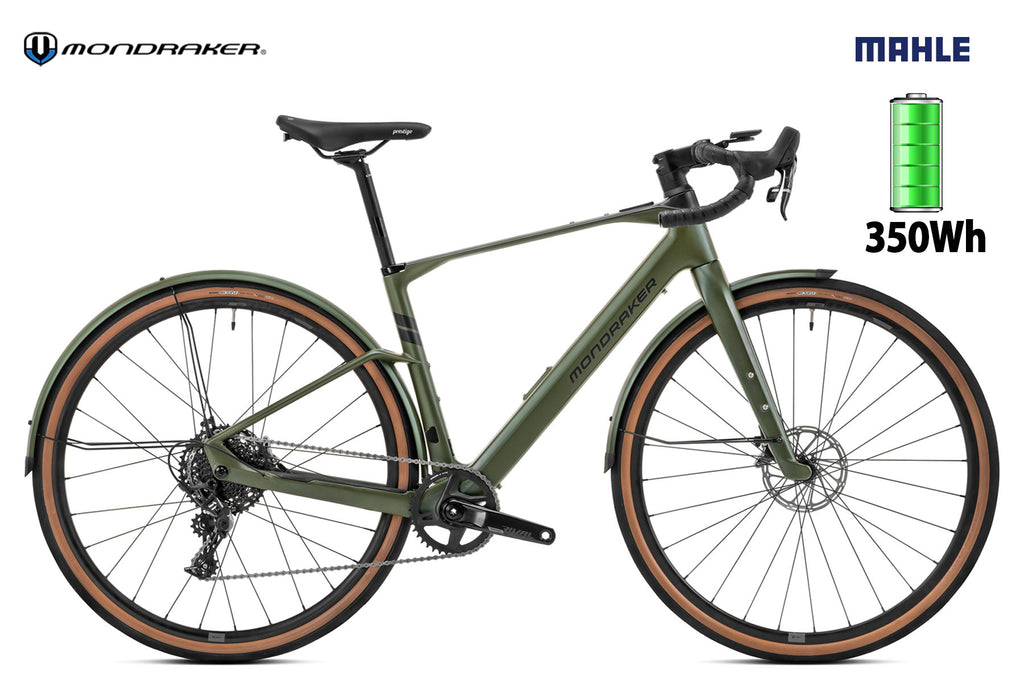

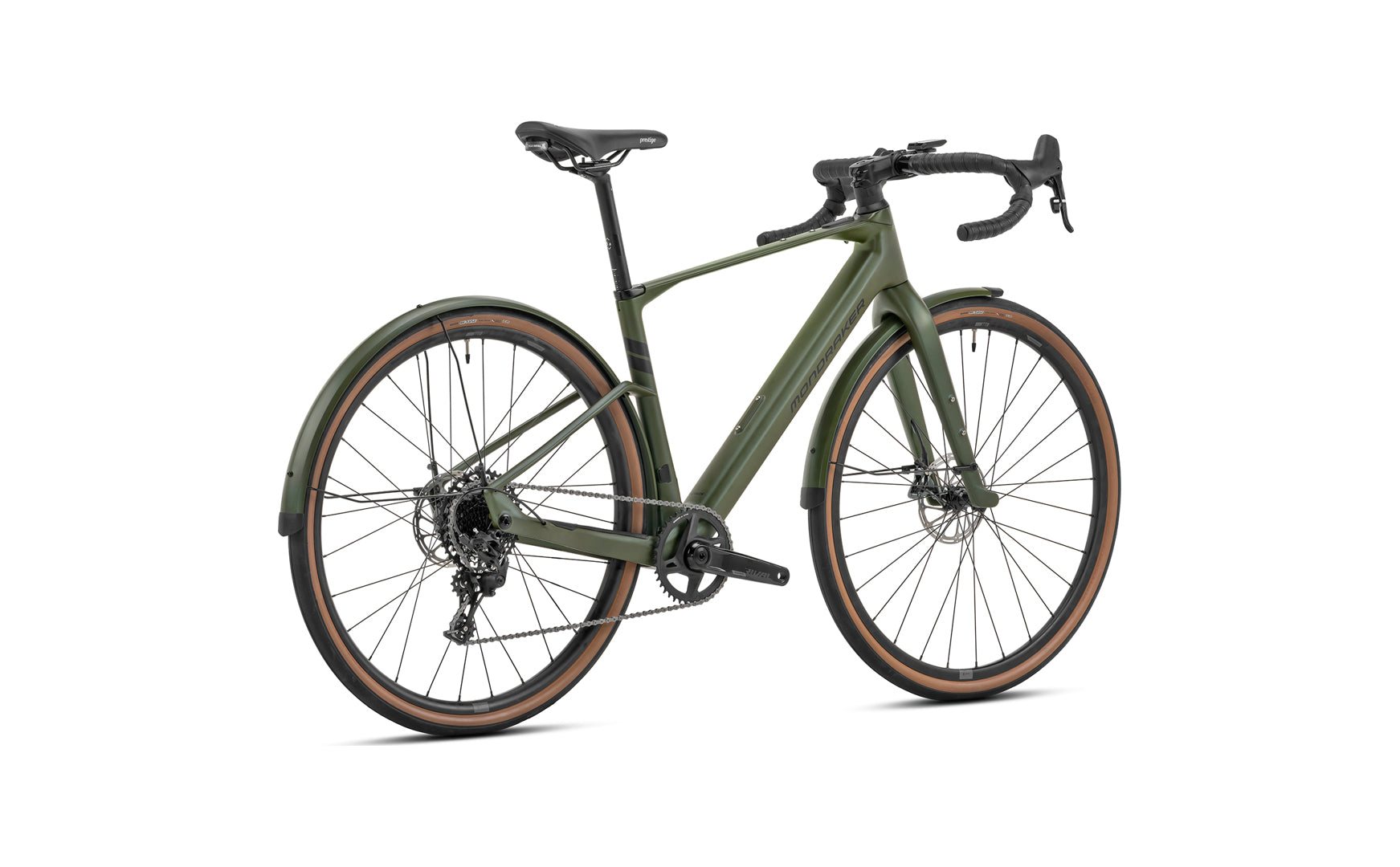

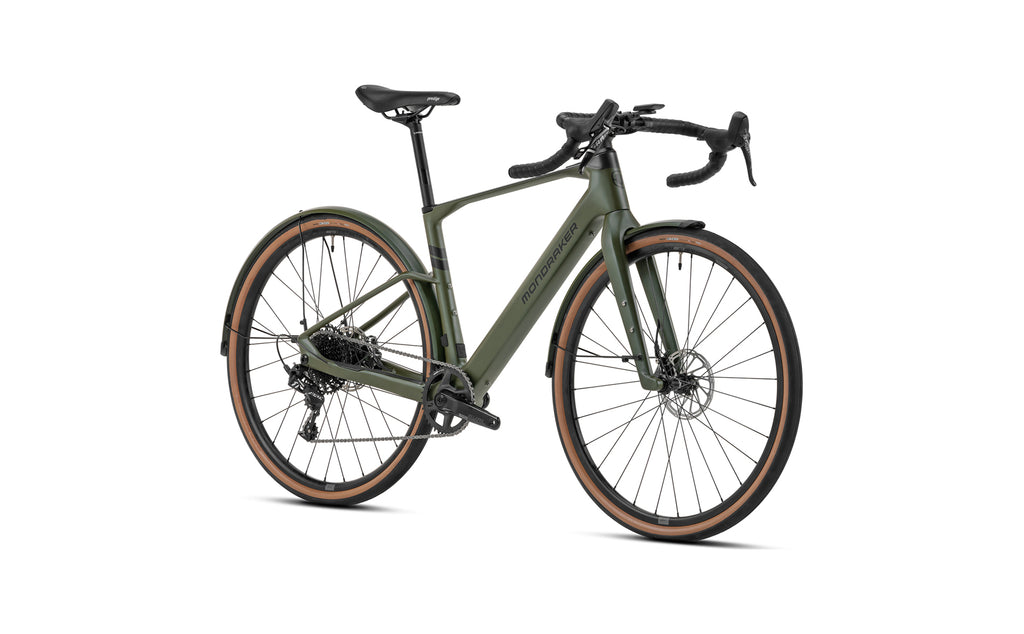

Say hello to the new DUSTY SX . Our newest URBAN CROSS bike is not only lighter, but also faster than anything you've ever known before. Make your daily commute quality time on the bike and enjoy your rides even more on the weekend.
THE DUSTY SX is based on the well-known DUSTY, the e-gravel bike with Mondraker off-road genes, but is optimized for use in urban “off-road”. It's a city bike with off-road DNA, making it the fastest daily commuter in the city, but also the best choice for long weekend rides. Asphalt. Trails. Adventure. You decide!
FRAME
Dusty Stealth Air Carbon, 386 EVO Press-Fit bottom bracket, butted head tube, HHG internally routed cables and cables, integrated non-removable battery, 12x142mm rear axle, developed for single or double shifting, compatible with flat-mount brakes, speed sensor integrated in the dropout
Size
S: 440mm / M: 460mm / L: 500mm / XL: 530mm
FORK
Stealth Air Carbon, butted head tube, HHG internal lines, flat mount brake caliper mount
TAX RATE
OnOff e-gravel butted for 1-1/8” to 1-1/2” head tube, sealed ACB bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
STEM
Onoff e-gravel, 6061 T6 aluminum, 31.8mm handlebar diameter, angle: +/-7º, length: size S/M: 80mm, size L/XL: 90mm
HANDLEBAR
OnOff Barium Gravel 18° Flare Handlebar. Width: size S/M 440mm, size L/XL 460mm
HANDLES
Barium Gravel Dark Gray
SEAT POST
OnOff Barium Gravel Carbon Microadjust, diameter 27.2mm, length 400mm
SADDLE
Selle Royal Prestige 139mm
FRONT BRAKE
Sram Apex 1, two-piece caliper, one-piece 160mm 6-hole Centerline brake disc, organic brake pads with steel backplate
REAR BRAKE
Sram Apex 1, two-piece caliper, one-piece 160mm 6-hole Centerline brake disc, organic brake pads with steel backplate
BRAKE LEVER
Sram Apex, lever width adjustment with tool, aluminum brake lever
RIMS
MDK-XG1, 23mm inner width, tubeless ready, 32 spokes
SPOKE
CN round, stainless steel
HUB FRONT
Novatec D041, Boost 12x100mm, sealed bearings, IS 6-hole
REAR HUB
Mahle X20 12x142mm, sealed bearings, IS 6-hole
FRONT TIRES
Maxxis Re-fuse 700x40, Tubeless Ready, Dual Compound, MaxxShield EXO puncture protection, 60 TPI, foldable, brown sidewall
REAR TIRE
Maxxis Re-fuse 700x40, Tubeless Ready, Dual Compound, MaxxShield EXO puncture protection, 60 TPI, foldable, brown sidewall
CRANKS
Sram Rival 1 GLS Wide, S: 170mm, M/L: 172.5mm, XL: 175mm.
CHAINRINGS
Sram X-Sync Eagle 40Z, aluminum, direct mount, narrow-wide,
INTERNAL BEARING
Mahle Press-Fit, sealed bearings, with torque sensor
CHAIN
Sram PC-1110, 11-speed, Powerlock
REAR DERAILLEUR
Sram Apex 1, 11-speed
SHIFT LEVER
Sram Apex 11-speed, X-Actuation 1:1, Single Click
CASSETTE
Sram PG-1130 11-42, 11s
MISCELLANEOUS
Front and rear custom E-Gravel fenders. Optional range extender: Mahle e185, 172Wh
DISPLAY
Pulsar One Wireless
ENGINE
Mahle X20 drive
BATTERY
Mahle X20 IX350Wh
