FRAME

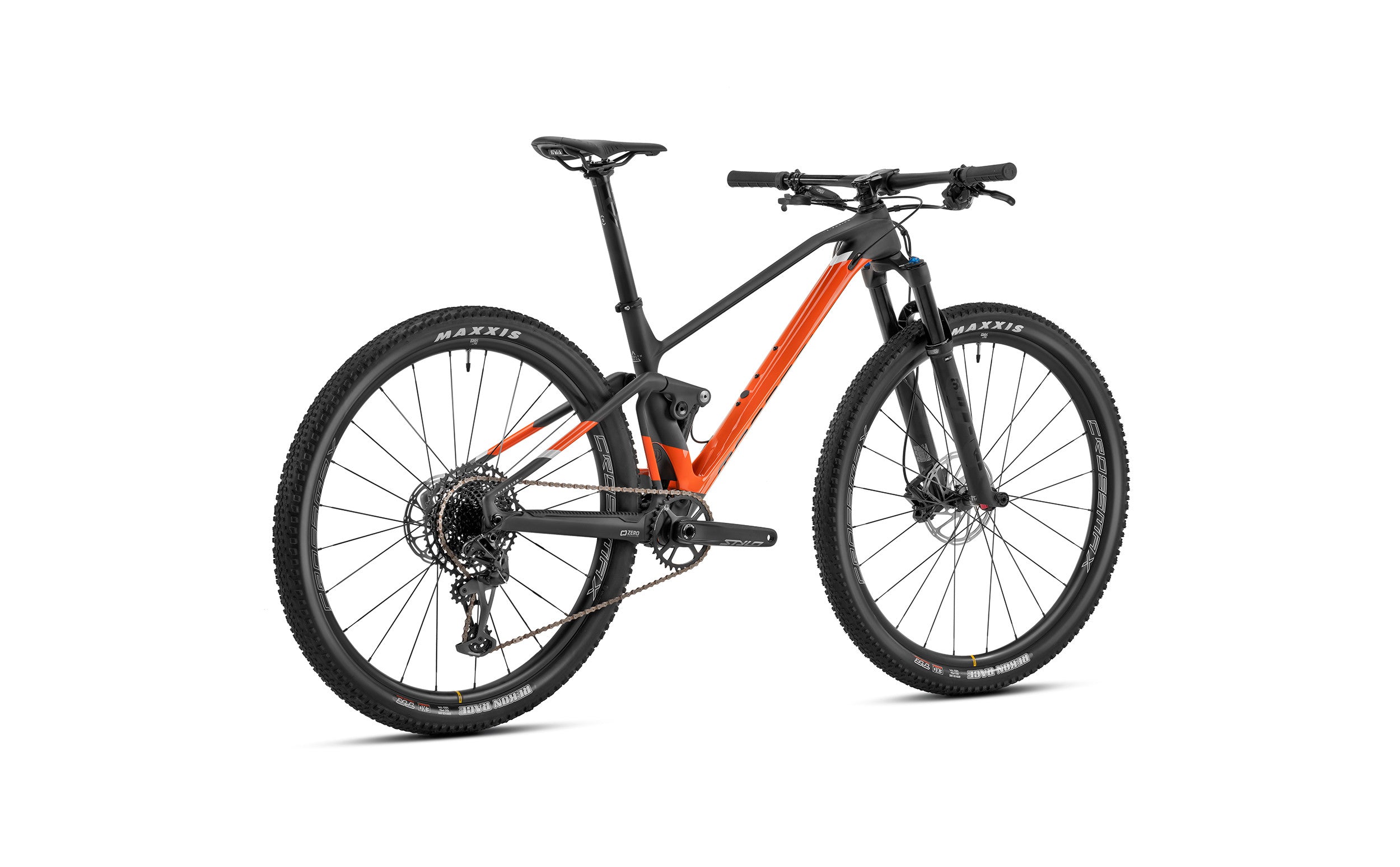

F-Podium 29 Stealth Air full carbon, XCO optimized Zero Suspension System, 100mm travel, XC Forward Geometry, upper rocker carbon monoblock, BSA bottom bracket, butted head tube, HHG internally routed lines and cables, specific design for 1-speed drives, Boost 12x148mm rear axle, splash guard for damper, postmount brake mount
Size
S: 390mm / M: 420mm / L: 470mm / XL: 510mm
MUTE
Fox Float DPS SV Performance Elite, 185x47.5mm. Settings: 2-stage compression (open/lock) with remote control, low-speed rebound, air pressure. Upper mounting: Trunnion, lower bearings: 22.2x10mm
DAMPER SETTINGS
Compression level: high, rebound level: low, volume spacer 0.2
FORK
Fox 34 Step Cast Float GRIP EVOL Performance, 110mm, butted head tube, Boost 15x110mm axle, 44mm offset. Settings: Remote 2 position push unlock, rebound, air pressure
TAX RATE
Acros AZX-239 R1 Block Lock, ZS44/28.6 above, ZS56/40 below
FORK REMOTE
Fox Dual Pull
STEM
MDK, 6061 T6 aluminum, 31.8mm handlebar diameter, angle: +/-5º, length: size S/M: 50mm, size L: 60mm, size XL: 70mm
HANDLEBAR
ONOFF Sulfur 0.2, double butted 6061 aluminum, rise: 4.8mm, width: 760mm, 9º horizontal offset/backsweep, 0º vertical offset/upsweep, 31.8mm handlebar diameter
HANDLES
ONOFF Twin, lock-on single, 135mm
SEAT POST
ONOFF Sulfur 0-R, 6061 T6 aluminum, 3D forged, diameter 31.6mm, length 400mm
SADDLE
FIZIK Antares R7
FRONT BRAKE
Sram Level T, two-piece caliper, one-piece 180mm 6-hole Centerline brake disc, organic brake pads with steel backplate
REAR BRAKE
Sram Level T, two-piece caliper, one-piece 160mm 6-hole Centerline brake disc, organic brake pads with steel backplate
BRAKE LEVER
Sram Level T, Direct Link operation, lever width adjustment with tools, ball-bearing brake levers
RIMS
Mavic Crossmax 29, 25mm inner width, welded, hookless, tubeless ready, 24 spokes
SPOKE
Mavic Straight Pull, double butted, contactless crossed
HUB FRONT
Mavic Boost 15x110mm, IS 6-hole
REAR HUB
Mavic Boost 12x148mm, ID360 freehub system, IS 6-hole
FRONT TIRES
Maxxis Rekon Race 29x2.35, EXO puncture protection, tubeless ready, 120 TPI, foldable
REAR TIRE
Maxxis Rekon Race 29x2.35, EXO Protection, Tubeless Ready, 120 TPI, foldable
CRANKS
Truvativ Stylo 6K Eagle, 12-speed, Boost, DUB axle, direct mount chainring, size S: 170mm, size M/L/XL: 175mm
CHAINRINGS
34T, steel, X-Sync 2
INTERNAL BEARING
Sram DUB BSA, sealed bearings, 73mm
CHAIN
Sram SX Eagle, 12-speed, power lock
REAR DERAILLEUR
Sram GX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
SHIFT LEVER
Sram Trigger SX Eagle, 12-speed, X-Actuation 1:1
CASSETTE
Sram PG-1230, 11-50T, 12-speed
DERAILLEUR HANGER
Sram UDH
WEIGHTED
12.4kg
