THE BIKE CAN BE PRE-ORDERED NOW! DELIVERY DATE ON REQUEST

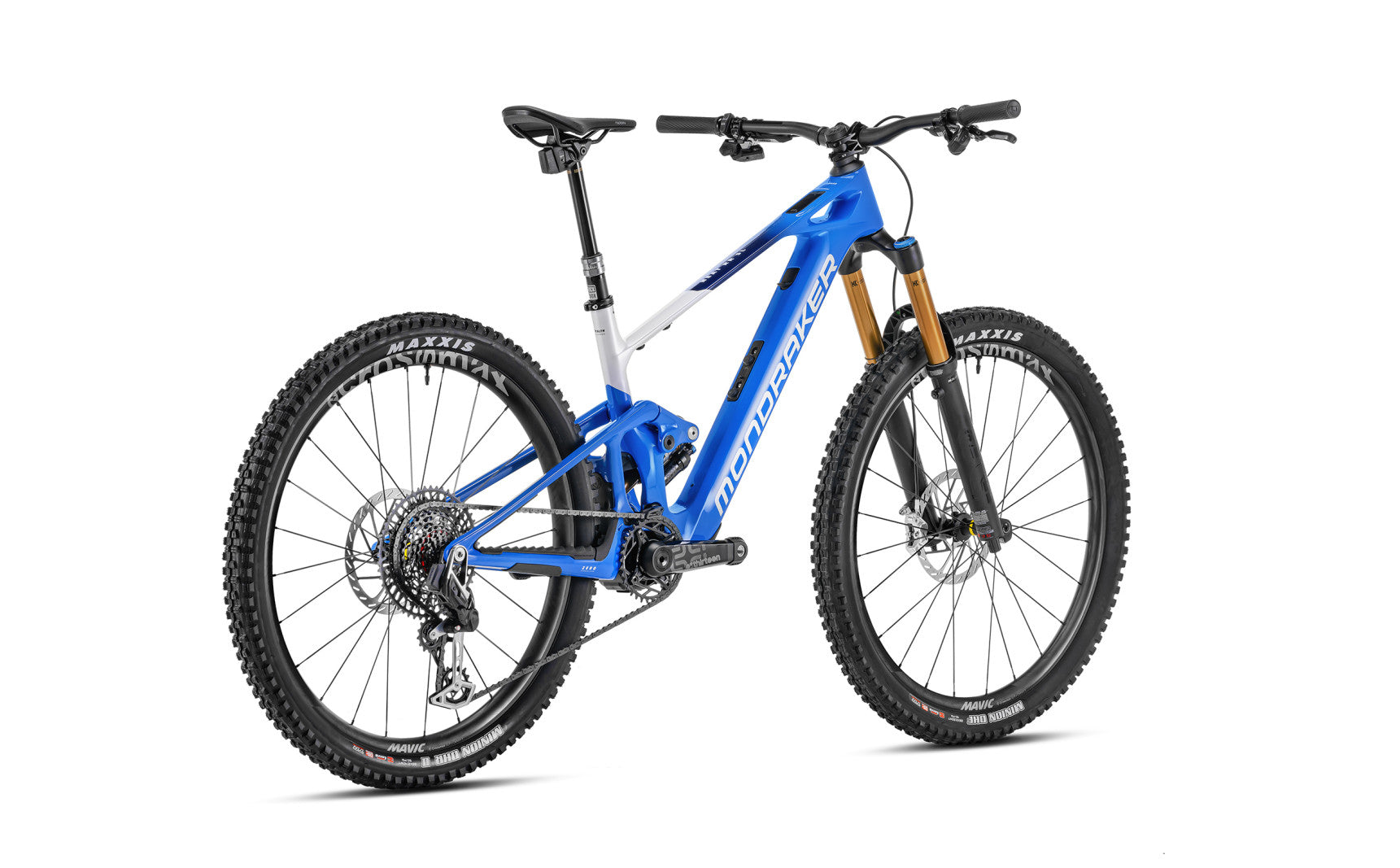

All NEAT models are based on the same frame made of STEALTH AIR CARBON and the TQ-HPR50 drive with its integrated but removable 360Wh battery. There are 3 equipment variants: The NEAT R, NEAT RR and the top model NEAT RR SL. What all 3 models have in common is a Fox Float
The NEAT RR SL comes with a Fox 36 29 Float GRIP2 Factory Kashima fork, SRAM XX Eagle T-Type AXS drivetrain, RockShox Reverb AXS dropper post and Mavic E-CrossMax Carbon XL R wheels.
Performance is what inspires us as mountain bikers. Weight plays an important role here, but only if it does not limit the overall package. The overall package and the interaction of chassis, geometry and drive!
FRAME
Stealth Air Full Carbon, e-bike-optimized Zero Suspension System, 150 mm travel, Forward Geometry, integrated and removable battery, 12 x 148 mm Boost rear axle, tapered head tube, one-piece upper rocker monoblock, internally routed cables and cables (HHG) , sealed “MAX Capacity” bearings, extra large 15 mm axles, speed sensor integrated in the dropout, exclusive plastic motor covers.
Size
S: 380mm/M: 420mm/L: 450mm/XL: 490mm

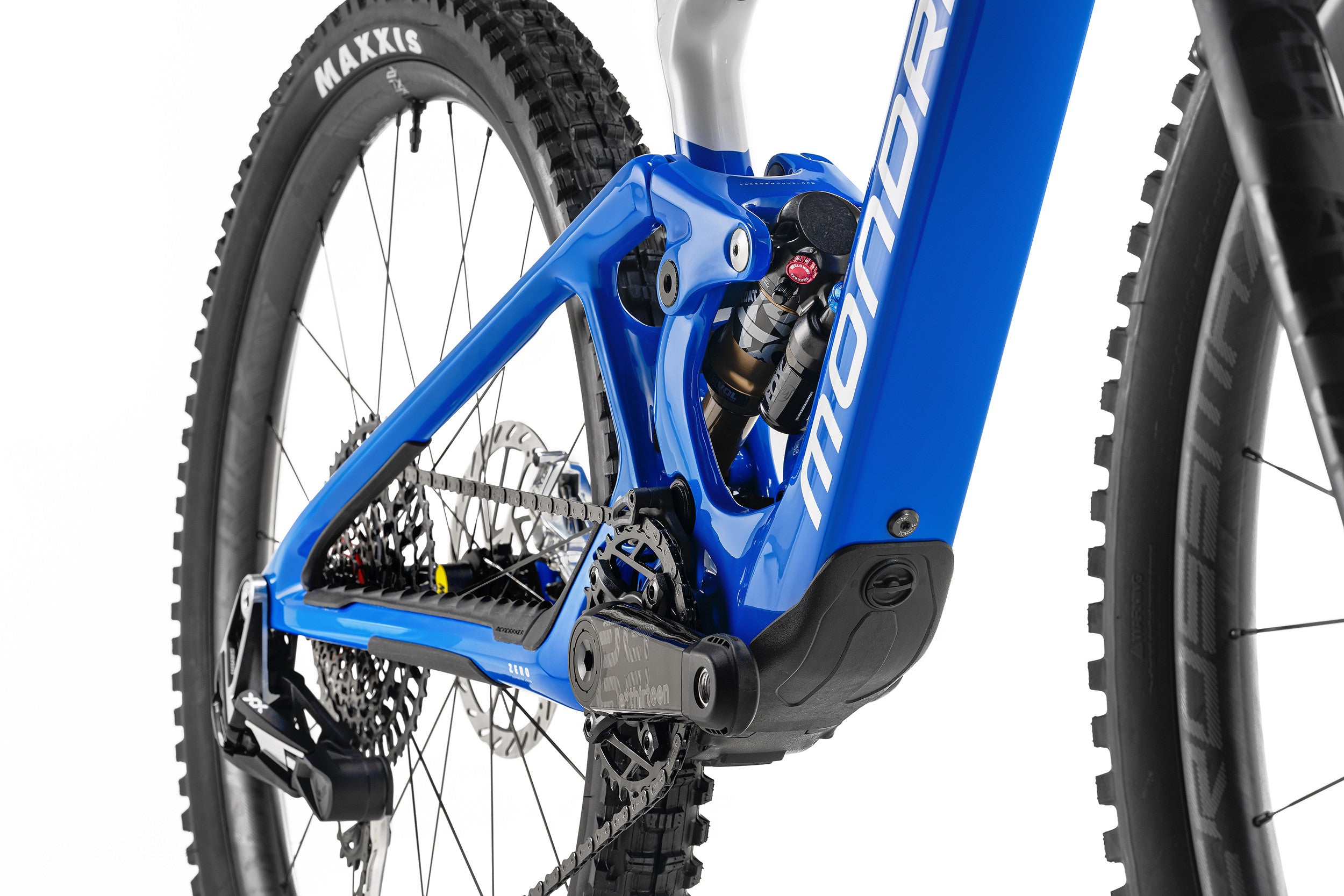

MUTE
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: Compression with 2 modes (Open/Firm), rebound, air preload. Top trunnion mount, bottom bushings: 30 x 8 mm
DAMPER SETTINGS
Medium compression, medium rebound, air volume spacer 0.4
FORK
Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered head tube, 15x110mm Boost Kabolt axle, 44mm offset. Settings: High and low speed compression, high and low speed rebound, air preload
TAX RATE
Acros Custom for 1-1/2" head tube, angular contact ball bearings 40 x 52 x 7, internally routed cables and cables
STEM
ONOFF Krypton FG 30 mm, CNC, 31.8 mm handlebar diameter
HANDLEBAR
ONOFF Krypton Carbon 1.0, rise: 25 mm, width: 800 mm, 9° horizontal offset/backsweep, 5° vertical offset/upsweep, 31.8 mm handlebar diameter
HANDLES
ONOFF Desert, single lock-on, 135 mm
SEAT POST
RockShox Reverb Stealth AXS, diameter 31.6 mm, size S: 340 x 125 mm, size M: 390 x 150 mm, size L: 440 x 170 mm, size XL: 440 x 170 mm
SADDLE
Fizik Terra Aidon Slim X5
FRONT BRAKE
SRAM Level Ultimate Stealth, 4-piston caliper, one-piece 200mm IS 6-hole HS2 brake disc, organic brake pads with steel backplate
REAR BRAKE
SRAM Level Ultimate Stealth, 4-piston caliper, one-piece 200mm IS 6-hole HS2 brake disc, organic brake pads with steel backplate
BRAKE LEVER
SRAM Level Ultimate, tool-free reach adjustment, lever joint bearing, carbon lever
RIMS
Mavic E-CrossMax Carbon XL R, 29 Boost, 30 mm internal width, hookless, tubeless ready, 28 spokes
SPOKE
Mavic 28 spokes, straight spoke head, double butted
HUB FRONT
Mavic Infinity hub, Boost 15 x 110 mm, IS 6-hole
REAR HUB
Mavic Infinity hub, ID360 freehub technology, Boost 12 x 148 mm, IS 6-bolt, XD freehub
FRONT TIRES
Maxxis Minion DHF 29 x 2.5 WT, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead
REAR TIRE
Maxxis Minion DHR II 29 x 2.4 WT, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead

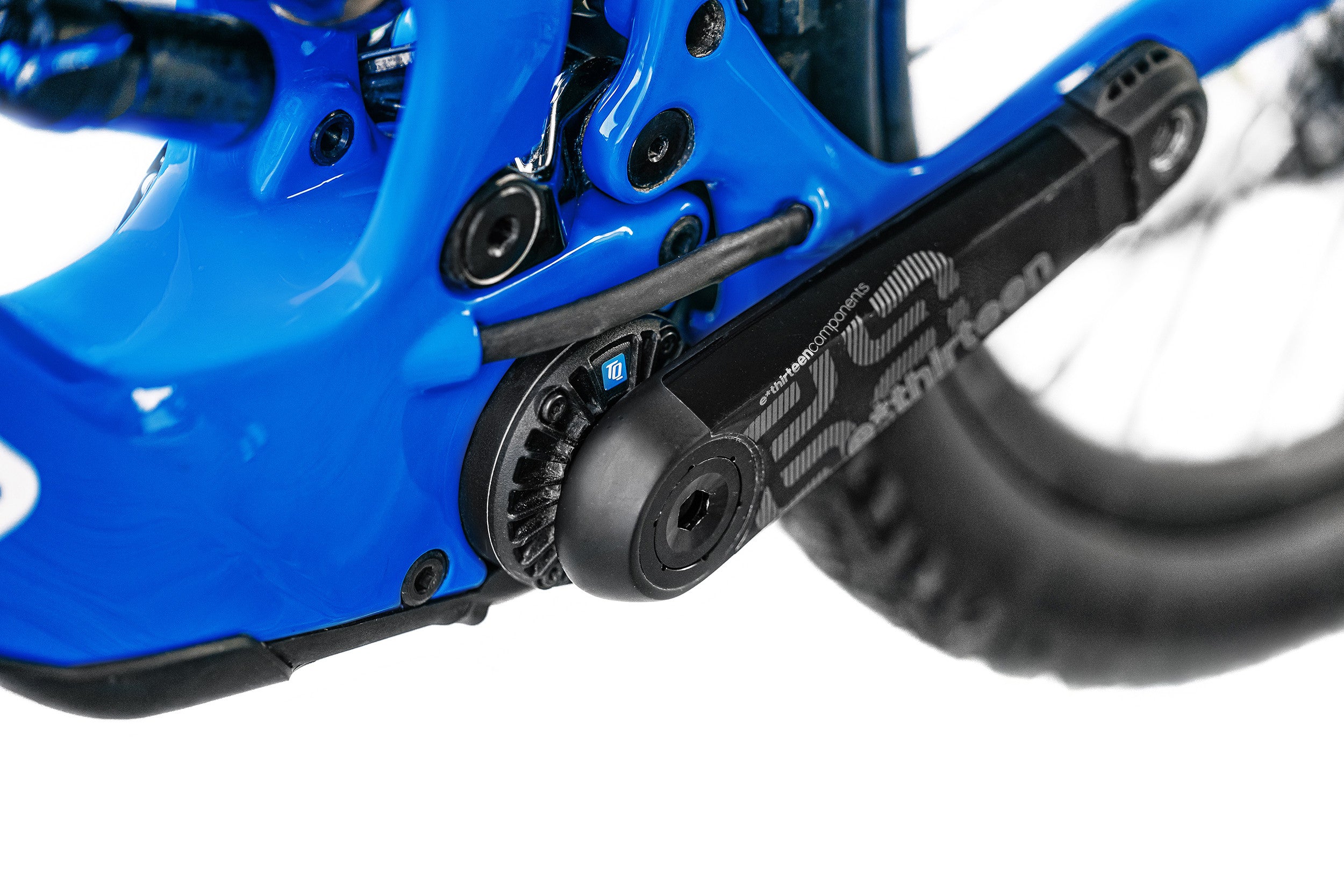

CRANKS
e*thirteen TRS Race Carbon E-Bike, size S: 165 mm, size M: 165 mm, size L: 170 mm, size XL: 170 mm
CHAINRINGS
SRAM X-SYNC 2 Eagle 34Z T-Type, steel, narrow-wide, 104 BCD
CHAIN
SRAM X0 Eagle T-Type, 12-speed, Powerlock
REAR DERAILLEUR
SRAM XX Eagle AXS, Roller Bearing Clutch T-Type, Cage Lock, long carbon cage, 1x12-speed
SHIFT LEVER
SRAM Eagle AXS Pod MMX, 12-speed
CASSETTE
SRAM XG-1295, 10-52T, T-Type, 12-speed
MISCELLANEOUS

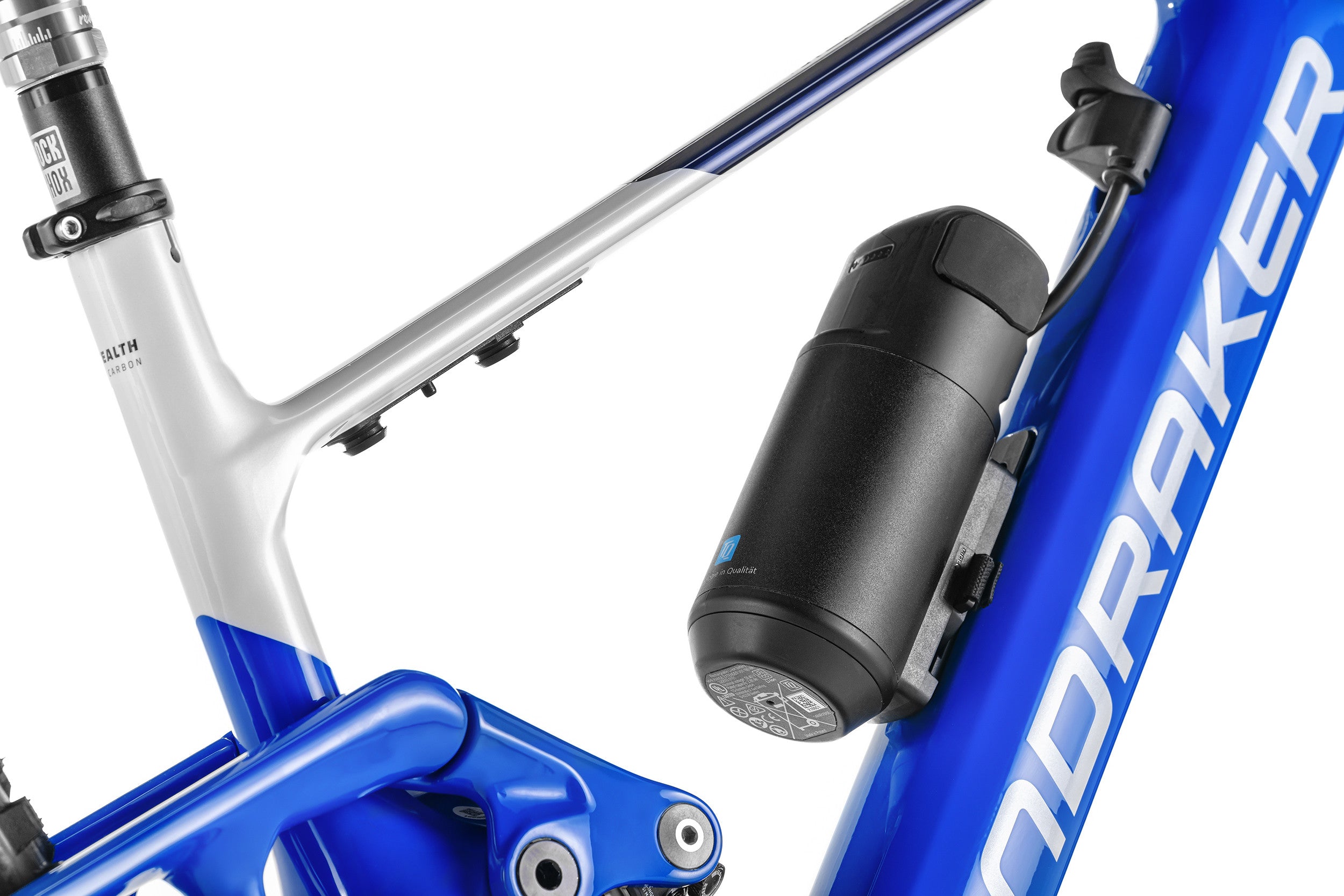

Mondraker Fidlock bottle, transparent smoked glass, 600 ml + Fidlock Base holder *Optional external battery: TQ 160 Wh
WEIGHT
17.9kg - Max System Weight 150kg
DISPLAY
TQ HPR Display V01
ENGINE
TQ HPR-50
BATTERY
TQ HPR-50 360 Wh, integrated and removable
