Description
What does it matter?

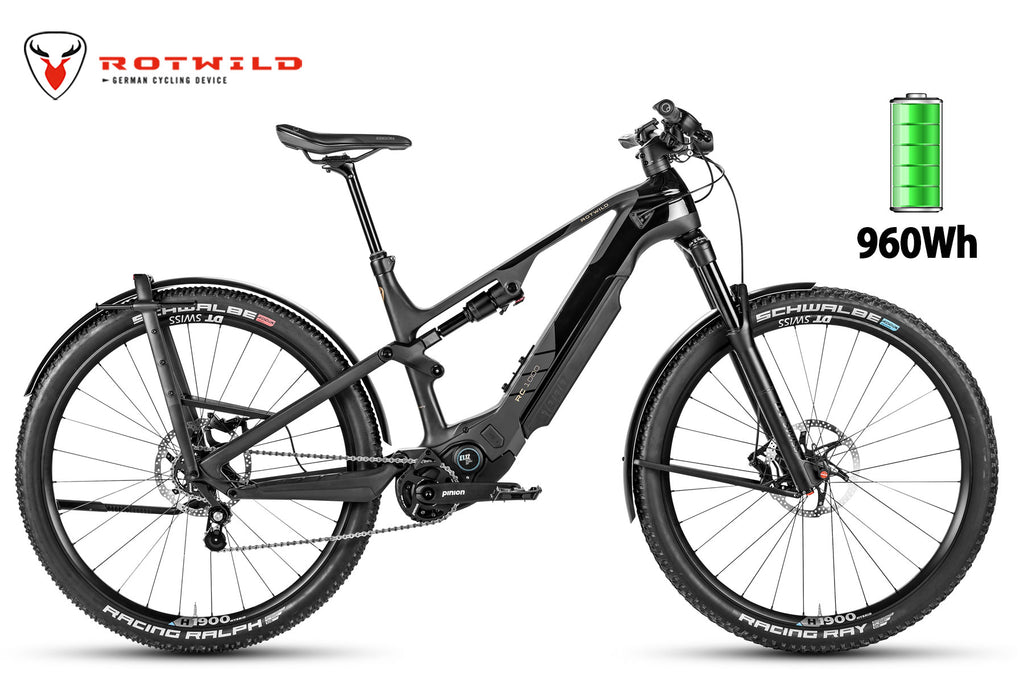

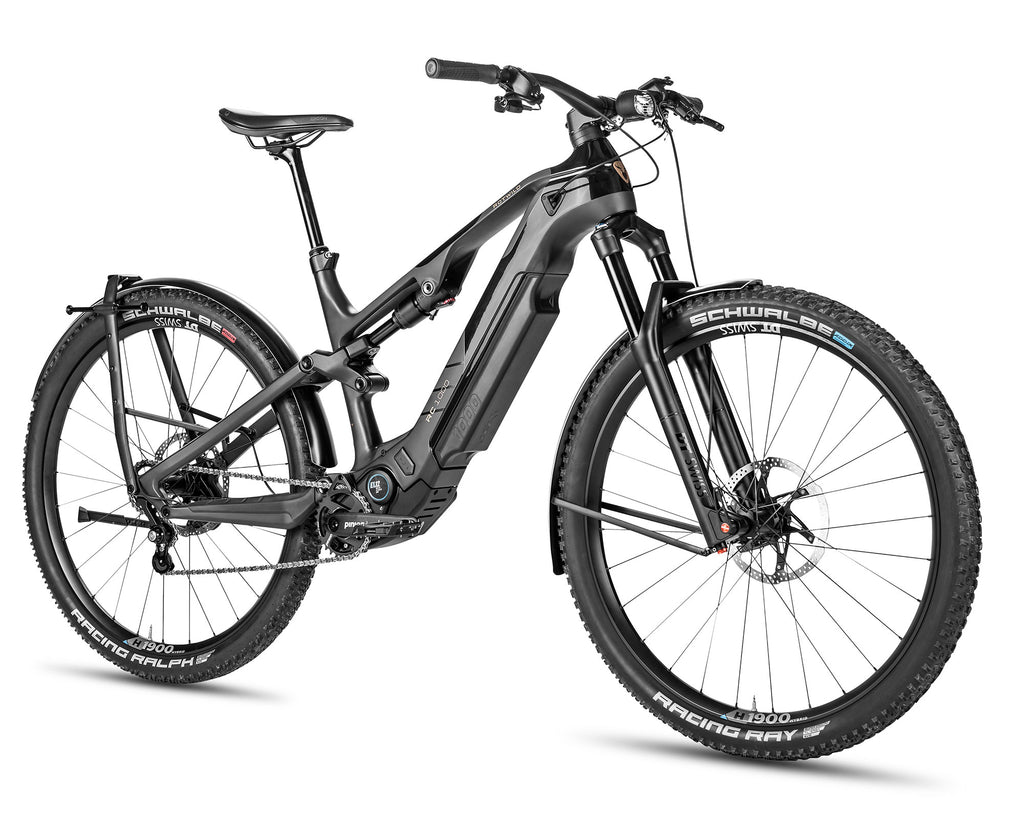

The interaction of the brand new Motor.Gearbox.Unit (MGU) from Pinion, a geometry that covers many application scenarios and optimal weight distribution makes the R.C1000 a competent cross over. This is what ROTWILD has in its name. The bike is at home almost everywhere your everyday life takes you: to work, to go shopping, but also for an after-work ride or an extended family tour at the weekend. But perhaps we are exaggerating too much. Because if we take it very seriously: The C.1000 can do more than just everyday paths. No matter where: The MGU combines the engine and gearbox and is positioned low on the bottom bracket and therefore centrally in the bike. Official name? E.1.12. It supports you constantly with energy from a battery that provides enormous power with an effective 960 watt hours. With 85 Newton meters of torque and a wide gear range of 12 gears, you can bring this power to the trail. Very smoothly, because the R.C1000 switches electronically. By combining drive and motor, the bike does not require a rear derailleur or cassette. Shifting most of the unsprung mass to the middle saves weight in the rear triangle. It creates the necessary freedom to flexibly take luggage with you using the standard carrier system. Without having to compromise on ride comfort or the mobility of the bike. The R.C1000 is your complete everyday companion. That's why we offer it with extensive standard equipment, as a TOUR.
overview
- Frame: Full carbon made from high modulus carbon fibers, handmade
- Suspension fork: DT Swiss F535, 140 mm travel
- Damper: DT Swiss R535, 140 mm travel
- Front tire diameter: max. 29x2.35
- Rear tire diameter: max. 29x2.35
- Permitted total weight: ASTM 2 / 150 kg
- Motor: Pinion E1.12 MGU / 12 gears / 4 support levels / up to 85 Nm torque
- Battery: IPU 1000 Ultracore - Lock / effective 960 watt hours / 4.8 A charger
- Accessories: Lighting from Supernova, Curana mudguards, bike stand, carbon mounting system for panniers, bell
- Color: Black
- Sizes: S / M / L / XL
Full carbon frame
The full carbon frame of the R.C1000 gives the bike a lot of stability and rigidity. The deep top tube and the low spring element positioning ensure an optimal feeling of safety, good freedom of movement and a low center of gravity. It is handmade and is made up of over 1,000 individual cuts. All wiring runs into the down tube and through the motor housing. For a tidy look and driving safety.
The chassis
The DT Swiss suspension elements offer you 140 mm of travel. Perfect for tackling many types of terrain: roads, forest roads, even rough trails. The balanced geometry ensures an integrated seating position. This gives you the necessary control over the bike with a high level of riding comfort.
MGU E1.12
MGU stands for Motor Gearbox Unit, an innovation from Pinion. E1 is the name of the engine. 12 indicates the number of gears. They are located in three series-connected gear sets with spur gear teeth. The MGU enables electronic switching, controlled by sensitive sensors. Pinion calls it SMART.SHIFT. When starting off on a hill and at a standstill, shift gears with almost no interruption in power flow. Select a gear or set your cadence. The MGU requires little maintenance because all moving parts in the magnesium housing are protected from external influences and impacts. The performance data: Torque up to 85 Nm, 600 W peak power, four speed levels.
FIT battery with 960 Wh
The battery comes from the product world of the Swiss manufacturer FIT. It effectively delivers 960 Wh. It integrates beautifully into the down tube. You can remove it and charge it from an external power source. You lock the energy cell securely in the down tube using an ABUS lock. The battery is integrated into the uniform and expandable system with various displays and the connection to the FIT app
Supernova lighting system
The Supernova M99 Mini Pro High Beam lamp installed in the cockpit ensures safety through visibility. Its counterpart is the Supernova TL3 Pro LED Tail Light, which is integrated into our unique carbon carrier system mounting system in the rear. You brake, the tail light shows your surroundings.
Luggage storage system
The R.C1000 is equipped with an innovative luggage storage system as standard. You can attach different types of bags to the bike using removable holders and take the things you need in your daily life with you. You can also prevent your clothing from getting dirty with mudguards. These integrate into the mounting system at the rear
Single speed chain
In our mountain bike tradition, we consciously rely on the sportiness of a wide and robust single chain. It transfers the power from the MGU to the rear wheel. All she needs for this cycle is a small chain tensioner at the back. This saves space under the motor housing and prevents damage. Since the chain line always remains the same, we can significantly reduce wear compared to conventional chains.
Equipment R.C1000 TOUR
mute
DT Swiss R535
tax rate
ACROS RW750 1.5 Headset
Fork
DT Swiss F535
Handlebars
ROTWILD B280 AL7075
Stem
DEER S240
display
PINION Remote LCD RD1.2
Seat post
Crankbrothers Highline
saddle
ERGON SMC Core
Handles
ERGON GA30 Sportive Wing
drive
PINION E1.12 MGU
battery
IPU1000 Ultracore
charger
4.8A charger
crank
PINION
chainring
Direct Mount Chainring 30T.
Chain guide
ROTWILD R.1000 Chainguide
Shift lever
PINION TE1
Chain
PINION X1 Longlife
cassette
PINION 24T.
Brake from.
TRP C2.3
Brake hi.
TRP C2.3
Brake disc from.
TRP RC01E 2.3
Brake disc hi.
TRP RC01E 2.3
impeller from.
DT Swiss H1900 Spline (30)
Impeller hi.
DT Swiss H1900 Spline (30)
Tires from
Schwalbe Racing Ray
Tires hi.
Schwalbe Racing Ray
Headlight
SUPERNOVA M99 MINI PRO HIGH BEAM
Taillight
SUPERNOVA TL3 PRO LED TAIL LIGHT
Mudguards
CURANA fenders
Luggage carrier
Carbon pannier carrier
Changes and errors excepted.
