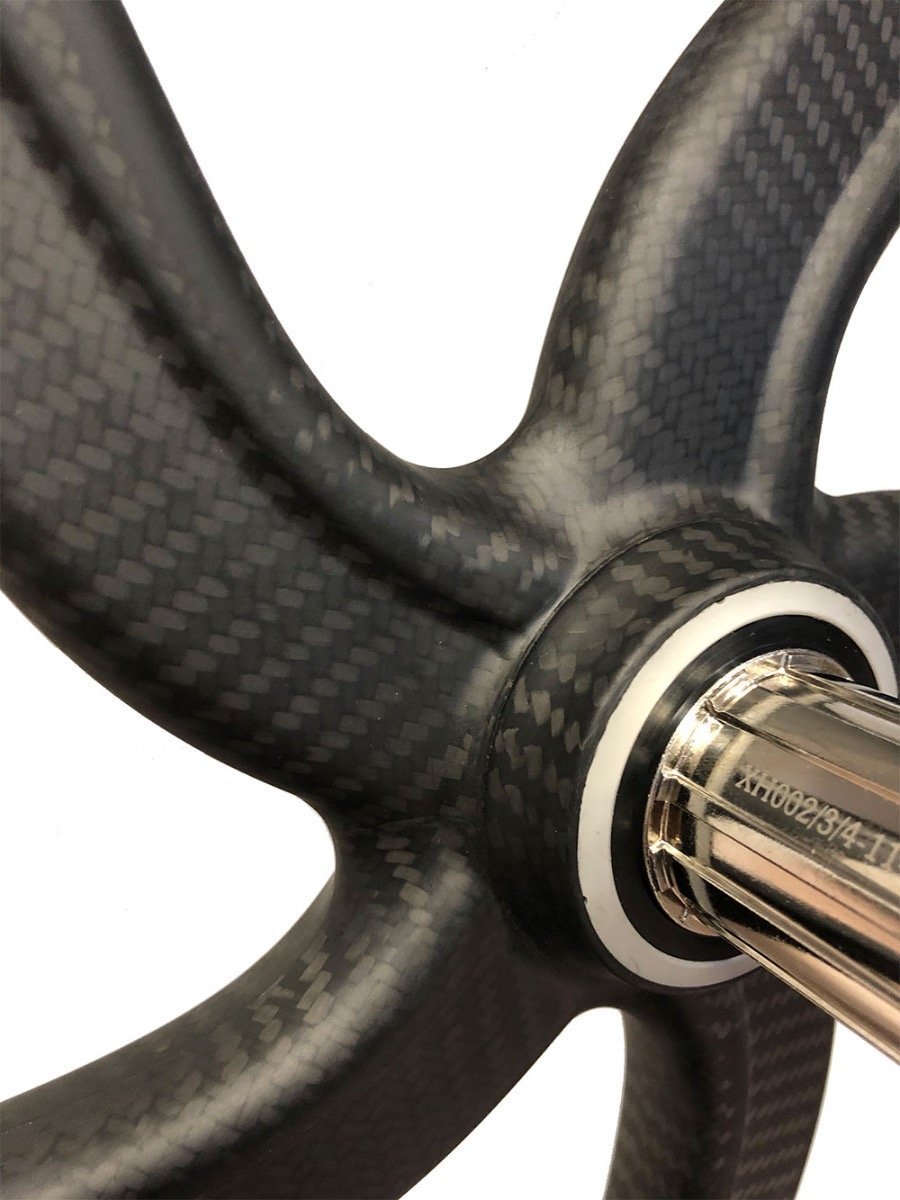

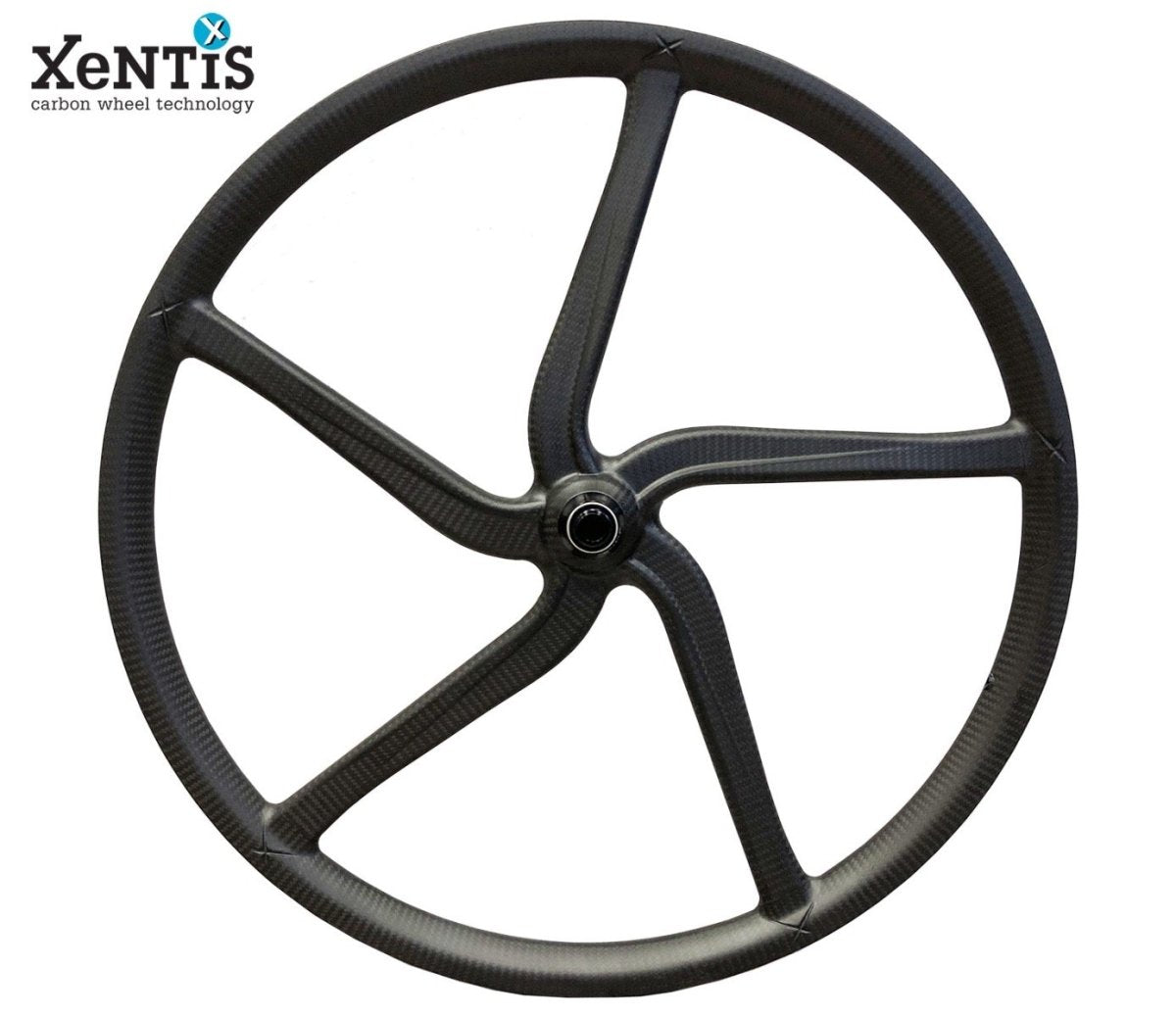

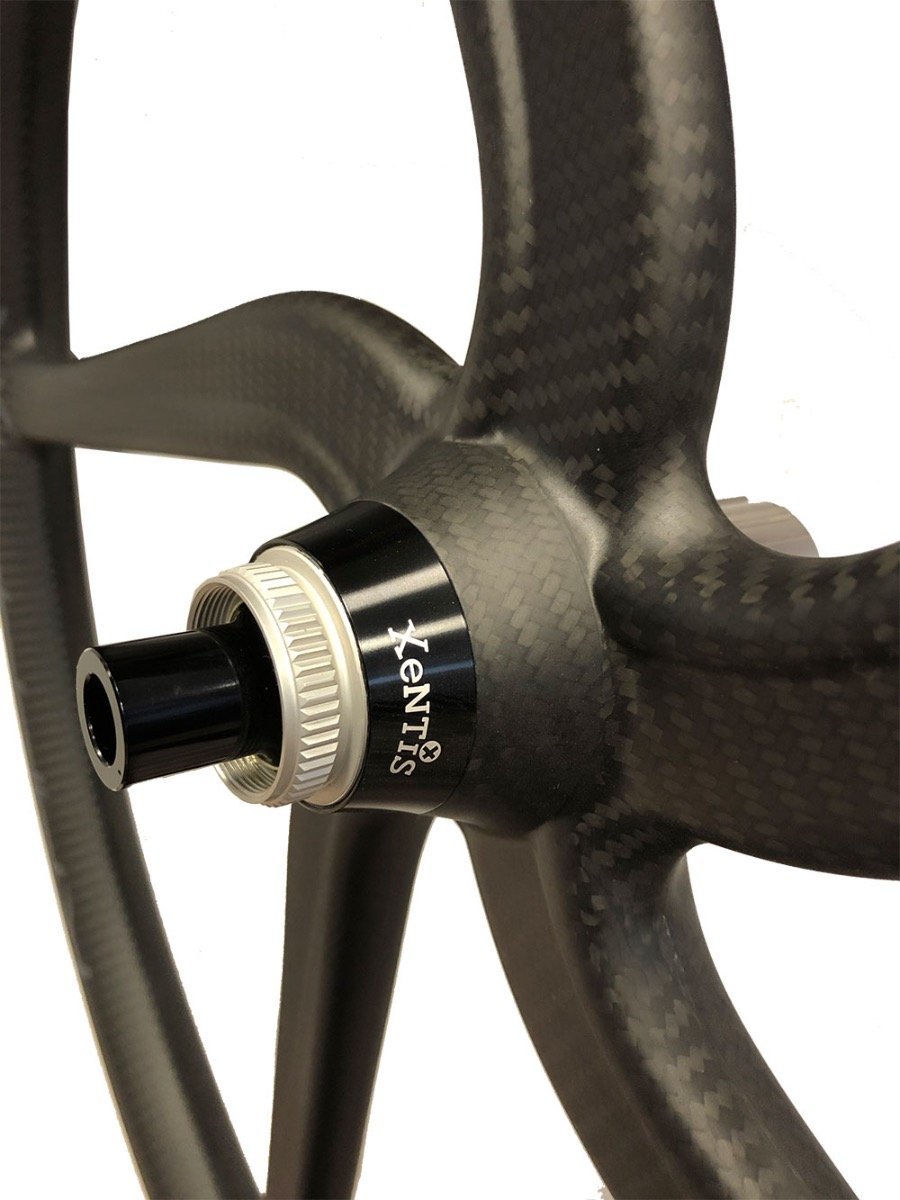

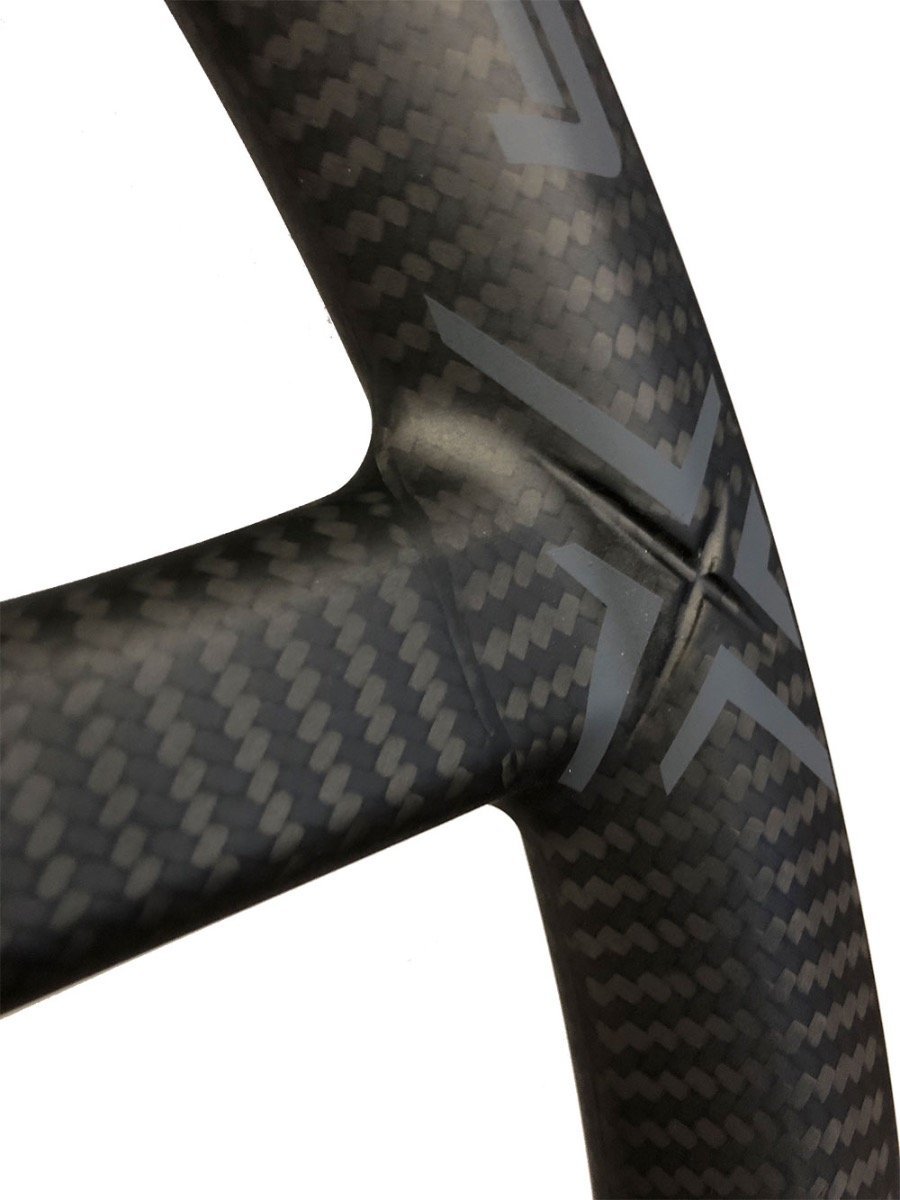

The perfect spoke geometry of the KappaX not only ensures excellent lateral stiffness and directional stability, but also has a cushioning effect when driving over obstacles due to the discreetly springy design in terms of comfort.
The development engineers at XeNTiS started the project with the ambitious goal of creating a globally innovative and technically and visually unique wheel that not only meets but exceeds customer needs in the mountain bike sector.
Each individual carbon layer was examined for its functionality and the gradual approach to the balance between lightweight construction and durability. After many iteration cycles in which the impeller design was optimized through FE analysis and prototype testing, a product is now being offered that eclipses everything that has come before.

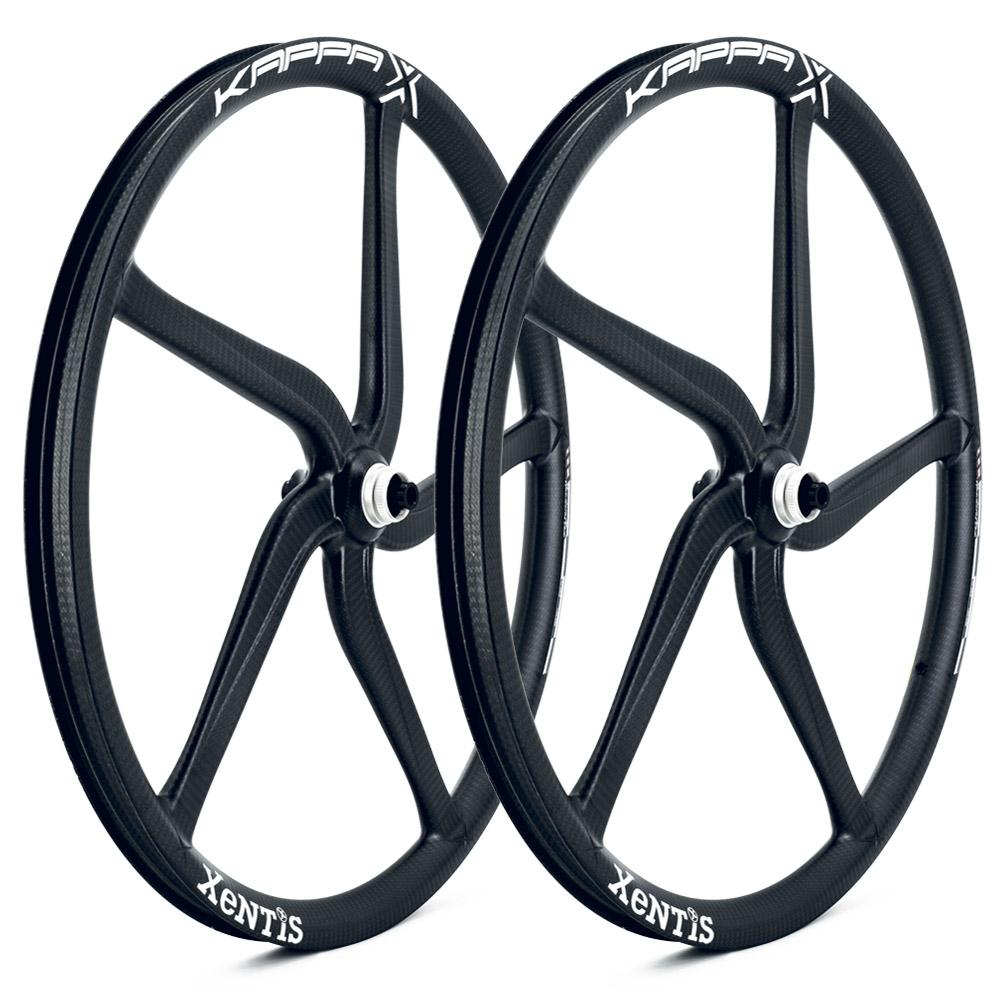

Extraordinary puncture protection is achieved by the tubeless-ready rim flange in hookless design. The monocoque wheelset is available in 27.5 and 29 inches as well as an e-bike version.
SPECIFICATION
Weight: 1497g (including rim tape)
Rim width: 36mm
Rim height: 30mm
Magnet for speedometer: yes
recommended valve length: 40mm
Dimensions rim: 622 x 30.5 hookless tubeless ready
Maximum tire pressure :
3.5 bar (29x2.10 in) /50 psi in (53-622)
3.2 bar (29x2.20 in) /46 psi in (57-622)
3.0 bar (29x2.40 in) /43 psi in (60-622)
2.9 bar (29x2.50 inch) /37 psi in (62-622)
2.8 bar (29x2.60 in) /40 psi in (65-622)
Max. recommended rider weight including equipment: 120kg
Accesories:
XeNTiS warranty card
XeNTiS wheel bag
XeNTiS rim tape
XeNTiS products may contain variations and specifications are subject to change without notice. Weight fluctuations (+/- 5%) may occur due to the production method of the wheel. Errors and changes excepted!
